Versatile Current Monitoring Relay Adjustable Relay AC over current and undercurrent monitoring relay
Description
The GRI8 series current monitoring relay is an advanced electronic device designed for the precise and reliable monitoring of current in AC circuits. Built with flame-retardant materials, this series offers unparalleled safety and efficiency, making it an ideal choice for protecting motors, pumps, conveyors, and various other critical equipment from current-related damage. The series provides comprehensive functionalities including overcurrent and undercurrent monitoring, with customizable settings and time delay adjustments to suit a broad range of application requirements.
Specification
Product Features:

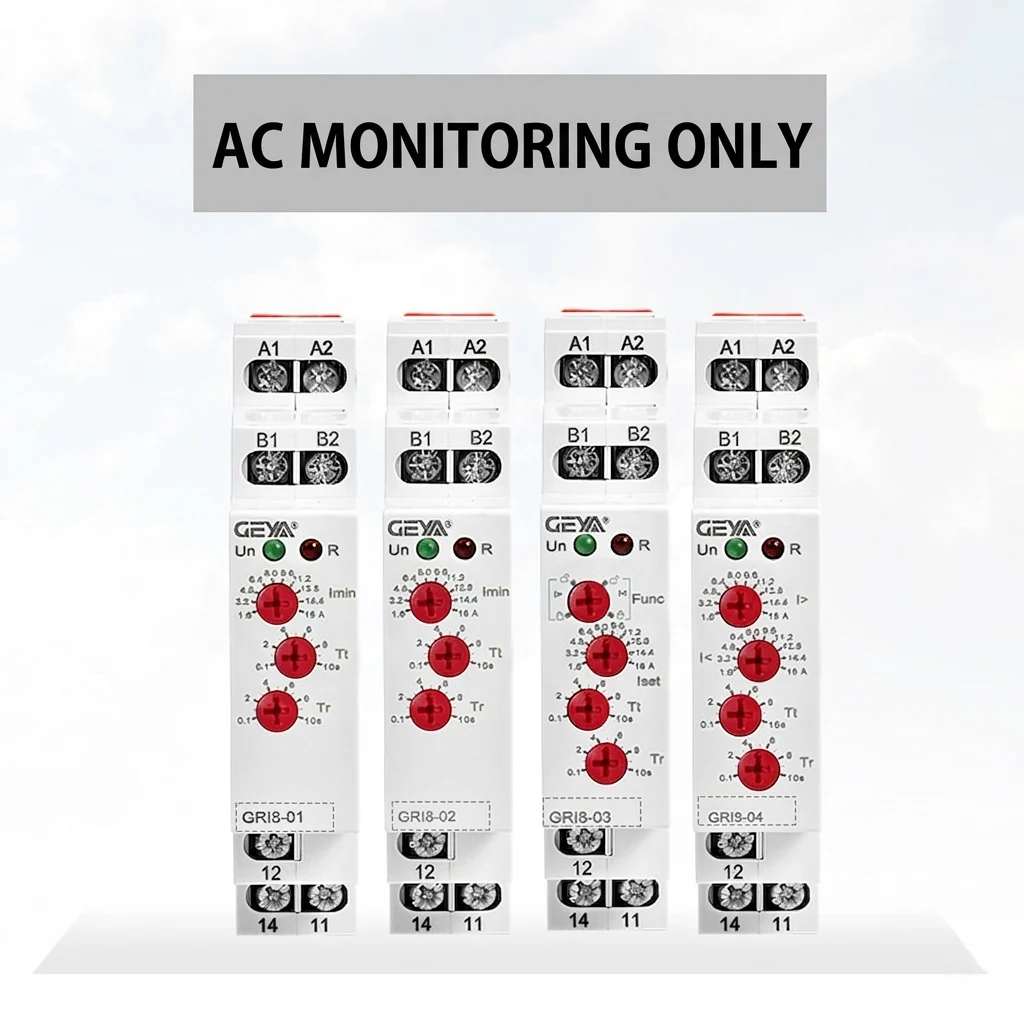

- Versatile Current Monitoring Functions:
- GRI8-01: Specialized for overcurrent monitoring.
- GRI8-02: Specialized for undercurrent monitoring.
- GRI8-03: Selectable overcurrent or undercurrent monitoring, offering increased flexibility.
- GRI8-04: Provides integrated overcurrent and undercurrent “window” protection, ideal for critical systems with tight operational boundaries.
- Highly Adjustable Settings:

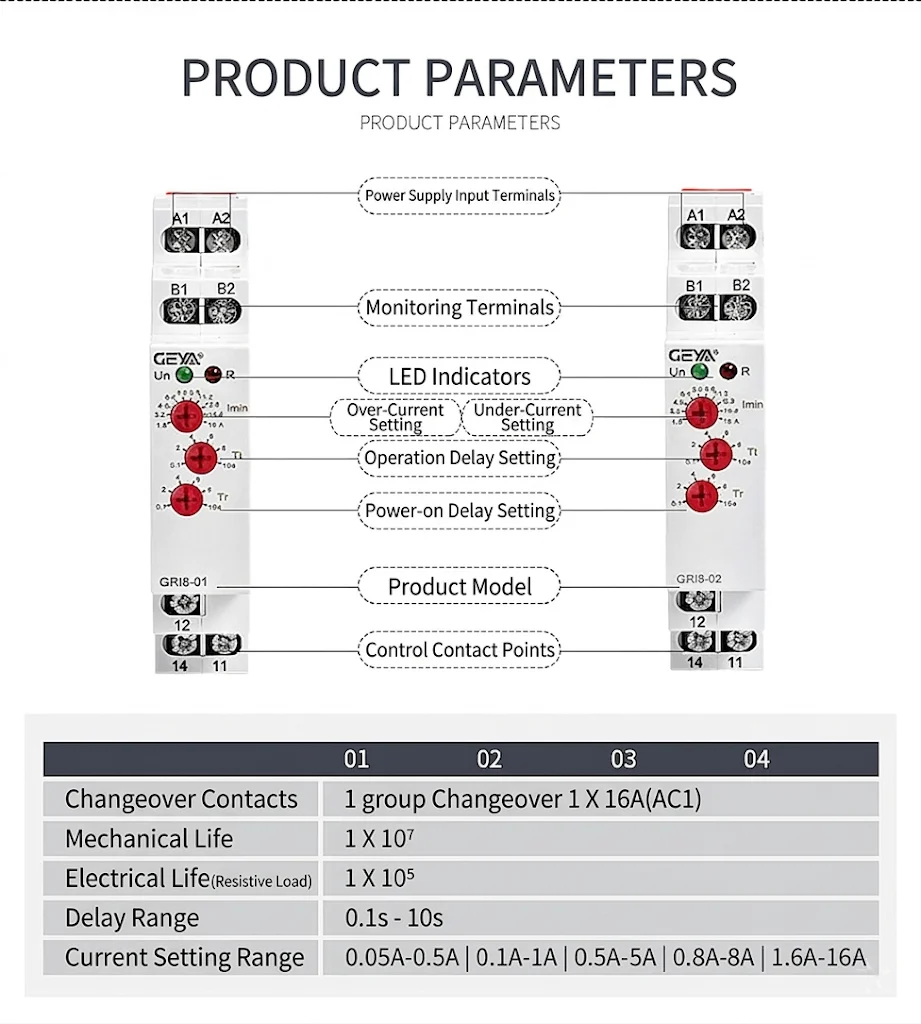

- Current Range: A wide range of current specifications from 0.05A to 16A, ensuring compatibility with diverse load requirements.

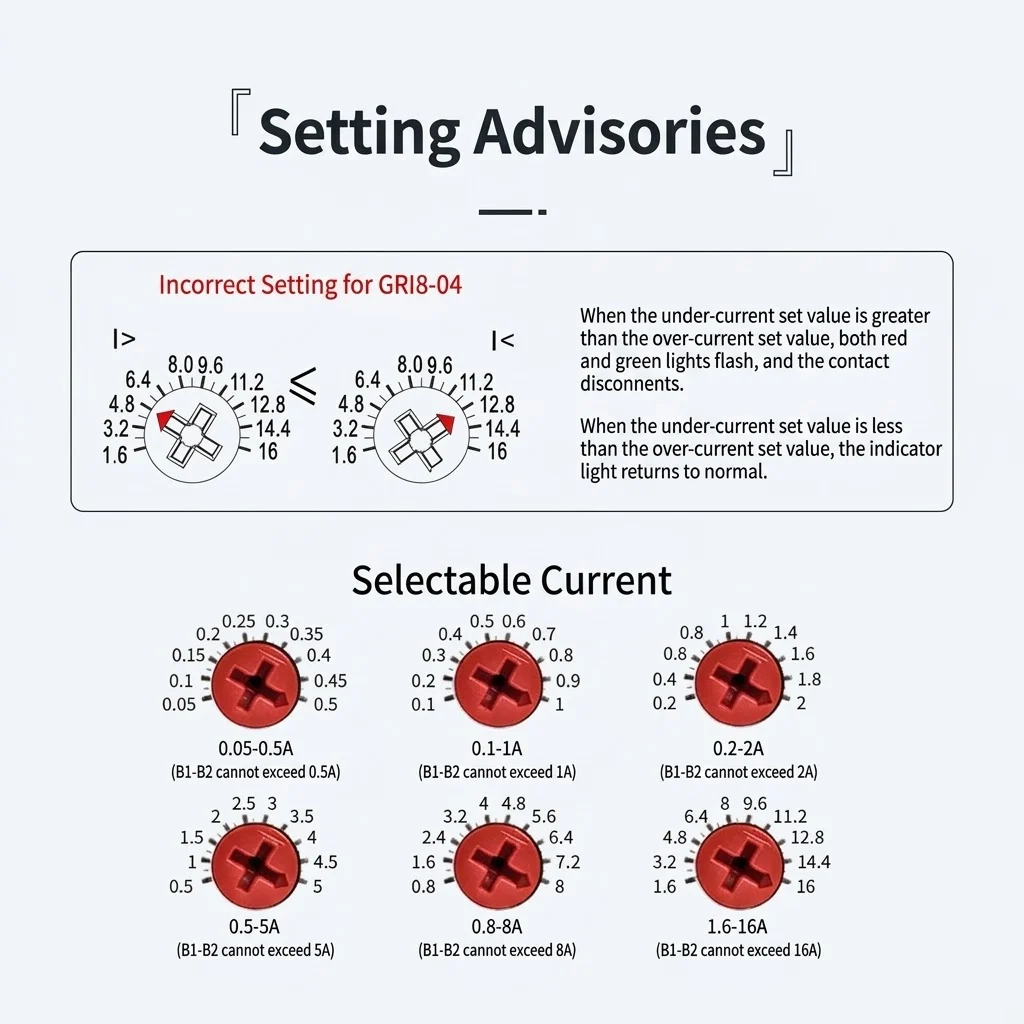

- Overcurrent (Imax) & Undercurrent (Imin) Thresholds: Continuously adjustable setting values allow for precise control over monitoring points.
Applications
Applications
The GRI8 series current monitoring relay is a critical component for power quality management and equipment protection across various industries, including:
- Motor Protection: Safeguards against overcurrent damage from motor stalling or single-phasing, and undercurrent damage from loss of load (e.g., in pumps running dry).
- Pumping Systems: Reliable undercurrent detection prevents catastrophic pump damage from dry running or loss of prime.
- Machine Tools (CNC, etc.): Monitors current during operation to detect tool breakage (indicated by a sudden overcurrent spike) or machine overload.
- Conveyor Systems: Detects blockages (overcurrent) or conveyor slip/breakage (undercurrent), improving safety and preventing equipment damage.
- HVAC Systems: Protects compressor and fan motors from various electrical faults.
- Industrial Automation: Integrated into control systems for automated workshops, providing essential data for remote monitoring and proactive maintenance.
- Power Distribution: used for current monitoring and fault detection in distribution panels and control cabinets.
- Renewable Energy: Monitors current in solar PV systems and wind power systems to ensure efficient operation and detect potential issues.
