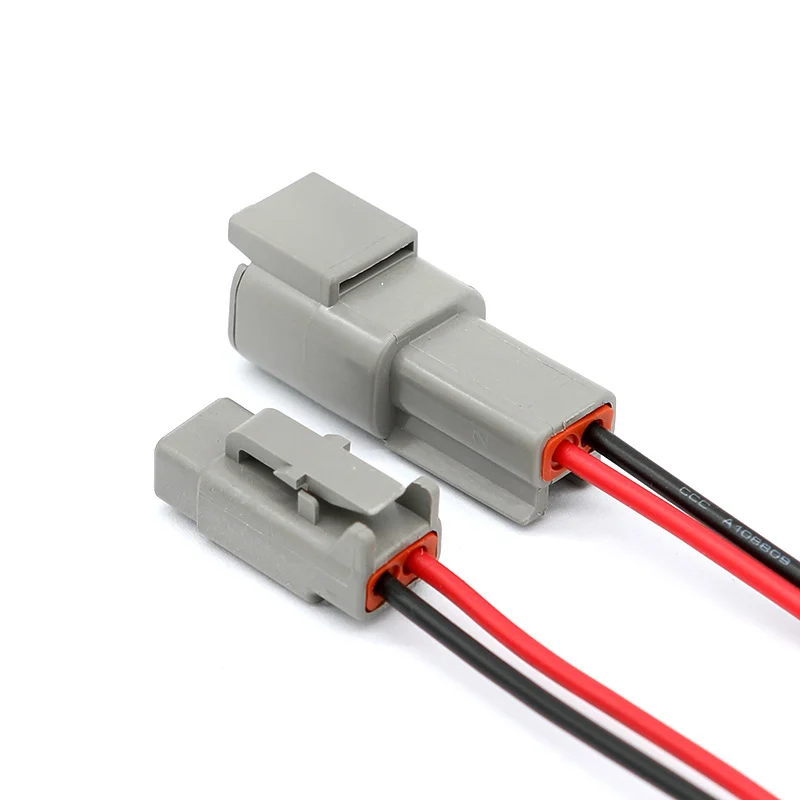

Motor vehicle and motorcycle brake JST connector with wire male end and female end connector
With a global network of manufacturing and R&D centers, JST continues to innovate, ensuring its male-female wire connectors remain at the forefront of connection technology, meeting the evolving needs of today’s electronic landscape.
Description
JST Male-Female Wire Connectors: Reliable Connections for Every Electronic Need
JST male-female wire connectors, manufactured by Japan Solderless Terminal (JST), are industry-leading interconnect solutions designed to establish stable, efficient electrical and signal connections across a wide range of applications. Engineered with precision and backed by decades of JST’s expertise in connection technology, these connectors combine compact design, robust performance, and easy usability to meet the demands of modern electronics.
Key Specifications & Benefits:

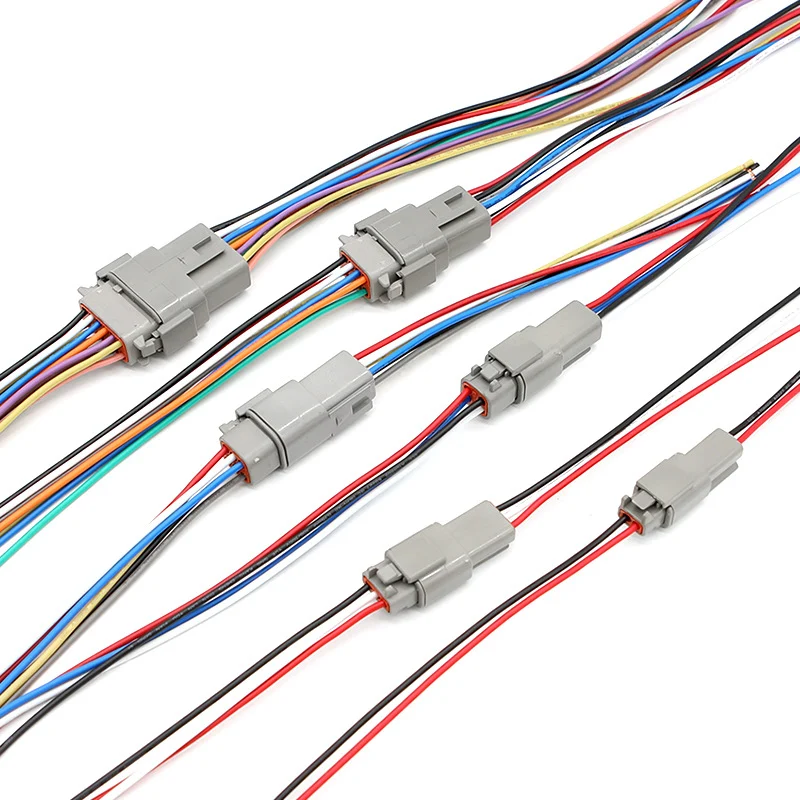

- Robust Waterproof Protection: The JWPF series features advanced sealing technology (often employing silicone rubber seals) to provide reliable protection against dust and water ingress. This makes it an ideal choice for both indoor and outdoor applications requiring environmental sealing.

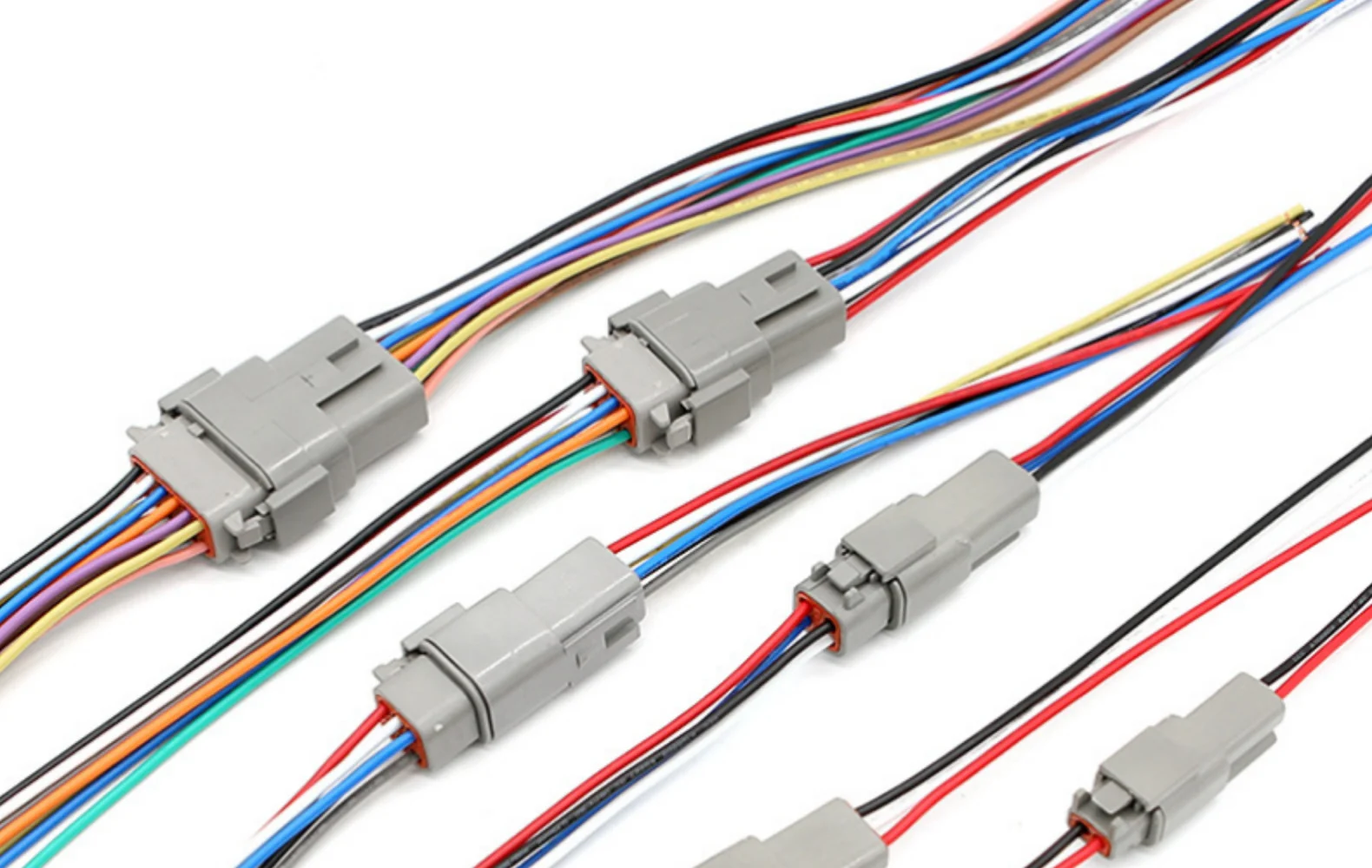

- Customizable Position Count: Available in configurations ranging from 2 to 8 holes (positions), this harness offers the flexibility to accommodate diverse wiring requirements, whether you need to connect a few simple signals or a multi-channel power and data interface.
- Premium Wire Specification: Built with high-quality 22AWG wire, this harness ensures efficient electrical conductivity and reliable signal transmission. The standard 22AWG gauge is suitable for a wide range of current and voltage levels.
- Convenient Standard Length: Each harness comes pre-terminated with a 15cm wire length, providing a convenient and ready-to-use solution that streamlines your installation process. Custom lengths can also be discussed for specific project needs.
- Secure Locking Mechanism: The JWPF connector includes a secure, audible locking mechanism to prevent accidental disconnection, ensuring the integrity of your connection in vibration-prone environments.
- Compact Design: The space-saving, small-pitch design of the JWPF series is ideal for compact electronic devices and systems.
Specification
| Key attributes | |||
| Application | Connection | Model Number | MX-DT |
| Type | Female | Wire specs | Multiple |
| Color | Multiple | Place of Origin | China |
Applications
Wide-Ranging Application Scenarios:
The combination of JST’s proven reliability and robust waterproofing makes this harness ideal for countless applications. Its versatility is perfect for scenarios such as:
- Electric Vehicles (EVs): Providing reliable connections for battery management systems, charging ports, sensors, and interior electronics in EVs, where standard, quality components are critical.
- Electric Motorcycles: Ensuring stable performance and an excellent mechanical lifespan for motor controllers, lighting systems, and dashboard interfaces in electric motorcycles.
- Industrial Automation: Power and signal connections for robots, automated machinery, factory equipment, and control panels, even in demanding Workshops (including standard and Unattended) where dust and moderate liquid exposure are common.
- Lighting and Signage: Connections for indoor and outdoor LED lighting systems, displays, and electronic signage.
- And More: Suitable for a broad spectrum of electronic and electrical systems requiring dependable, sealed interconnections.
